Quantum Annealing Using DWave: A Practical Introduction

This post acts as an introductory tutorial to using DWave’s OceanSDK to perform quantum annealing (QA), which is a method for solving optimisation problems. This intends to serve as a purely practical introduction to QA, not a theoretical one. We do discuss some theory, but it’s something that we gloss over since it is something that is worthy of a post in its own right.

In terms of prerequisites for following the tutorial, all that is expected is

• Familiarity with python
• Comfort with maths
• For one of the problems discussed: a basic understanding of graphs

What is Quantum Annealing?

#

In this section, we introduce some of the ideas behind QA. The key parts of this is the notion of the Ising and QUBO models since these are how we encode problems that we wish to solve with QA. We then discuss (very briefly) how QA is performed, this subsection is not required to follow the tutorial but I felt that having even a little bit of intuition is better than having no understanding at all.

For those who are interested in the details, a post will follow at a later date discussing the theory in more detail.

The Ising Model

#

The Ising model is a lattice model which was devised to model ferromagnetism and is used in statistical mechanics. For our uses, the following understanding is sufficient: let \(s_1, \dots, s_n \in \{-1, 1\}\), we call these variables “spins”. Then the hamiltonian of the Ising model is $$ H(s_1, \dots, s_n) = \sum_{i=1}^n \sum_{j=i+1}^n J_{ij} s_i s_j + \sum_{i=1}^n h_i s_i $$ The hamiltonian is simply a measure of the energy in the model. We call the \(J_{ij}\) the quadratic/interaction coefficients and the \(h_{i}\) the linear coefficients. We refer to the global minima of this hamiltonian as its ground state.

From a computational perspective, the key idea is to formulate our optimisation problems using the above model such that the optimal solutions coincide with the ground state of the hamiltonian. That is: if some set of spins give us the ground state, then they tell us a solution (and vice versa). Later, we will see how we can do this using 3 problems.

QUBO Model

#

The QUBO model is mostly analogous to the Ising model, except we use binary variables \(x_1, \dots, x_n \in \{0, 1\}\) instead. $$ H(x_1, \dots, x_n) = \sum_{i=1}^n \sum_{j=i+1}^n Q_{ij} x_i x_j + \sum_{i=1}^n Q_{ii} x_i $$ The key difference is that presentations of the QUBO model will store both the quadratic and linear coefficients in a single matrix. For consistency, we will call the global minima of the above function its ground state.

The QUBO and Ising models are equivalent. To see this, notice that we can easily map between the binary variables and spins using the following relation for all \(1 \le i \le n\): $$ s_i = 2 x_i - 1 $$ Then we have that \(s_i = 1 \iff x_i = 1\) and \(s_i = -1 \iff x_i = 0\).

Quantum Annealing

#

Let’s finally introduce the main idea of quantum annealing (while skipping over some details). Remember, this section is not required to follow the tutorial; do not feel disheartened if you struggle to understand the upcoming material.

QA is a type of adiabatic quantum computing (AQC) which in general follows these “simple” steps:

1. Find a hamiltonian (i.e. an Ising or QUBO model) where ground states represent solutions.
2. Choose a simple hamiltonian (different to the problem) where we can easily find its ground state.
3. Slowly transform the simple hamiltonian into the one which represents our problem.

By the adiabatic theorem, if this transformation is slow enough, then the overall system will remain very close to its lowest energy state (and thus when we reach the system representing our problem, we will have a solution).

The Details

#

We will now move on to some grittier details. Since the libraries will abstract these details away, it’s perfectly reasonable to skip this section for the sake of this tutorial.

Suppose we have formulated our problem as an Ising model (either directly, or by formulating as QUBO and converting), with coefficients \(J_{ij}\) and \(h_{i}\). Recall that our Ising hamiltonian was a scalar function \(H \colon \{-1, 1\}^n \rightarrow \mathbb R\), QA does not actually use this hamiltonian, instead it uses: $$ H_0 = \sum_{i=1}^n \sum_{j=i+1}^n J_{ij} \sigma^z_i \sigma^z_j + \sum_{i=1}^n h_i \sigma^z_i $$ This is not a function, it is an operator/matrix. Each of the \(\sigma^z_i\) are Pauli \(z\) operators which act on the \(i\)-th qubit. The details of what this all means will not be discussed in this post, as it is an entire topic on its own. We refer to \(H_0\) as the problem hamiltonian.

Then we combine this with a different, non-commuting hamiltonian: $$ H_1(t) = \Gamma(t) \sum_{i=1}^n \Delta_i \sigma^x_i $$ We refer to \(H_1\) as the driving hamiltonian, as this is what induces quantum tunneling and allows us to find our minima. Note that we choose \(\Gamma\) such that \(\Gamma(t) \rightarrow 0\) as \(t \rightarrow \infty\). Thus our full hamiltonian is $$ H(t) = H_0 + H_1(t) $$ Clearly, this fits with our intuition. This is because \(H(t)\) is representing something different to our problem, but over time \(H_1(t)\) vanishes, leaving \(H_0\) on its own, which indeed represents our problem.

This allows us to begin to solve the time-dependent Schrödinger equation (a PDE), which gives us the wavefunction \(|\psi(t)\rangle\) of our system. $$ i \hbar \frac{\partial |\psi(t)\rangle}{\partial t} = H(t) |\psi(t)\rangle $$ Here, \(\hbar\) is the reduced Planck constant. Note that here, and in most places discussing quantum physics, Bra-ket Notation is common place.

Applying Quantum Annealing

#

DWave is a company which does extensive research into quantum computing and has released several QPUs (Quantum Processing Units) dedicated to performing quantum annealing.

They provide a decent python library for formulating problems in the QUBO or Ising models, and provide classes which makes either simulating QA locally or using real QA via their cloud services extremely easy.

In this section, 3 different computational problems in order to provide examples as to how to use QA to solve them. If you wish to follow along, then setup a python environment (optional) and install the DWave library:

pip install dwave-ocean-sdk

Positive Set Partition Problem

#

Problem Statement

#

We define the positive set partition problem as follows. Given a set \(N = \{n_1, n_2, \dots, n_k\}\) where all the \(n_i \ge 0\), find a partition \((A, B)\) (i.e. two sets \(A, B\) such that \(A \cap B = \emptyset\) and \(A \cup B = N\)) such that $$ \sum_{a \in A} a = \sum_{b \in B} b $$ Note that this is equivalent to $$ \sum_{a \in A} a - \sum_{b \in B} b = 0 $$

Formulation

#

Now this is the key idea, since \((A, B)\) is a partition, every element of \(N\) appears in the equation above. Further, every element of \(N\) is positive, therefore, the equation boils down to choosing \(s_1, \dots, s_k \in \{-1, 1\}\) such that: $$ s_1 n_1 + s_2 n_2 + \cdots + s_k n_k = 0 $$ where \(s_i = 1\) iff \(n_i \in A\) and \(s_i = -1\) iff \(n_i \in B\).

Therefore, we will choose to use the Ising model to represent this problem. It’s difficult to write down the hamiltonian in the correct form straight away though, so we write down any function in terms of the \(s_i\) whose minima coincide with solutions to the problem.

A function which does this job, in this instance, is simply the one which we have written above. $$ H(s_1, \dots, s_k) = A \left( \sum_{i=1}^k s_i n_i \right)^2 $$ has a ground state which corresponds with a solution to our problem for any \(A > 0\).

What is the significance of \(A\) here? QA struggles when the energy (the value of the hamiltonian) is extremely large, hence having the coefficient allows us to scale the energy without deforming the “energy landscape”, i.e. all the extrema remain in the same places.

Now, \(H\) is not in Ising form, we cannot see what our \(J_{ij}\) and our \(h_i\) coefficients are. We can simply expand the squared term to get: $$ H(s_1, \dots, s_k) = \sum_{i=1}^k \sum_{j=i+1}^k 2A n_i n_j s_i s_j + \sum_{i=1}^k A n_i^2 $$ We can clearly see that our \(J_{ij} = 2An_in_j\) and \(h_i = 0\).

Note that since we are optimising, the constant term (i.e. the term that doesn’t depend on our function arguments \(s_i\)) can simply be ignored. Further, after dropping the constant term, we could absorb the factor of 2 into our energy scaling.

Implementation

#

We will now use DWave’s library to implement a solution to this problem. We will drop the constant term, which will leave us with the following hamiltonian: $$ H(s_1, \dots, s_k) = \sum_{i=1}^k \sum_{j=i+1}^k 2An_in_j s_i s_j $$ where \(s_1, \dots, s_k \in \{-1, 1\}\). I’ve chosen not to absorb the factor of 2 into the energy scaling as a matter of preference, but feel free to do so yourself.

DWave requires us to construct a BinaryQuadraticModel (BQM) object for our problem. This class has two static methods from_ising(h, J) and from_qubo(Q) which will return an instance of BinaryQuadraticModel which reflects the Ising model or QUBO model respectively. The nice thing about using DWave is it will handle conversion to and from both models for us, so had we used QUBO to start with, we wouldn’t have to bother with the manual labour of converting to Ising.

Now, we want our implementation to handle any set \(N\) and any choice of scale factor \(A\), so we will create a function that returns a BinaryQuadraticModel for a given instance of our problem.

from dimod import BinaryQuadraticModel

def set_partition_bqm(ns_set, a=1.0):
    # The matrix J
    quadratic_coeffs = {}

    # Fill up our matrix J with our quadratic coefficients as defined above
    k = len(ns_set)
    for i in range(k):
        for j in range(i+1, k):
            # Recall: J_ij = 2 * A * n_i * n_j
            quadratic_coeffs[(i, j)] = 2 * a * ns_set[i] * ns_set[j]

    # Now we can construct the bqm
    # We didn't have any linear coefficients, so we can just pass an empty dict
    return BinaryQuadraticModel.from_ising({}, quadratic_coeffs)

So now we have the BQM representing our model. How do we use this with QA? DWave provides a few of subclasses of Sampler, not all of them perform QA, so we only use 2 here.

If you do not wish to use DWave’s cloud services, you can use PathIntegralAnnealingSampler which simulates QA.

from dwave.samplers import PathIntegralAnnealingSampler
sampler = PathIntegralAnnealingSampler()

Otherwise, setup your environment for usage with the DWave cloud services by following this guide and use

from dwave.system import DWaveSampler, EmbeddingComposite
sampler = EmbeddingComposite(DWaveSampler())

The following will be the same regardless of your choice. We can now use the sample method with our BQM to perform QA. The result of this will be a SampleSet, since QA is an iterative process, the sample set will contain all the \(s_1, \dots, s_k\) assignments the sampler tried while hunting for minima. We are only concerned in the best one it found (i.e. the one with lowest energy).

sample_set = sampler.sample(bqm)
best = sample_set.first

best contains information about what “sample” (the assignments to the \(s_i\)) was, as well as the energy value obtained with this sample. As discussed before, we can uncover the partition that this result encodes by looking at the values of the \(s_i\) in the sample.

def partitions_from_sample(ns_set, sample):
    a = []
    b = []

    for i, n in enumerate(ns_set):
        if sample[i] == 1:
            a.append(n)
        else:
            b.append(n)

    return a, b

a, b = partitions_from_sample(ns_set, best.sample)

We can now glue these pieces of our implementation together, and provide a set \(N\) (ns_set in the code) to see what happens.

If you are following along, here are some things you may want to try:

• Try \(N = \{1, 2, 3, 4, 5, 6, 7, 8, 9, 10\}\). What do you expect? What do you get?
• Try \(N = \{25, 36, 39, 100\}\). Again, what do you expect? What do you get?
• How about a set where no such partition exists, say \(N = \{2, 4, 6, 8, 51\}\)?

Minimum Vertex Cover Problem

#

Problem Statement

#

Consider a graph \(G = (V,E)\) where \(V\) is the set of vertices and \(E \subseteq V \times V\) is the set of edges. A vertex cover is a set \(C \subseteq V\) such that for all \((u,v) \in E, u \in C\) or \(v \in C\).

The minimum vertex cover problem is defined as follows. Given a graph \(G = (V,E)\), find a vertex cover \(C \subseteq V\) with the least amount of elements.

We just consider undirected graphs in this case.

Formulation

#

First of all, \(V\) is certainly finite so write \(V = \{v_1, \dots, v_n\}\). Since we want to know whether or not each \(v_i \in C\), it makes more sense to use binary variables and hence a QUBO formulation here.

We define \(x_1, \dots, x_n \in \{0, 1\}\) such that \(x_i = 1\) if and only if \(v_i \in C\). Then the length of our vertex cover \(C\) is $$ \#C = \sum_{i=1}^n x_i $$

Now, by definition, for every edge \(v_i, v_j\) in the graph, we require that either \(v_i \in C\) or \(v_j \in C\). Hence, in terms of the binary variables we require \(x_i = 1\) or \(x_j = 1\). Therefore $$ x_i + x_j \ge 1 $$ Constraints of this form has no place in QUBO, we must reformulate this condition as an expression which is 0 if the constraint holds, and is greater than 0 otherwise. One can show that this expression does the job: $$ 1 - x_i - x_j + x_i x_j $$

Now, both our equation for \(\#C\) and our expression for our constraint are greater than or equal to 0 already, so no squaring is required. Our hamiltonian, with added energy scaling coefficients (\(A, B > 0\)), is therefore: $$ H(x_1, \dots, x_n) = A \sum_{i=1}^n x_i + B \sum_{(v_i, v_j) \in E} \left( 1 - x_i - x_j + x_ix_j \right) $$ All we’ve done here is added our two constraints (those being: the subset must be a vertex cover, and the subset must have minimum length) together.

The second term acts as a penalty for infeasible solutions, i.e. if \(x_1, \dots, x_n\) does not represent a vertex cover, then this term is non-zero.

We now rewrite this in standard QUBO form. We introduce the notion of an indicator function here, which serves no purpose but to simplify notation: $$ \mathbf{1}[\text{condition}] = \begin{cases} 1 & \text{condition is true} \\ 0 & \text{condition is false} \end{cases} $$ We also define what we mean by a degree of a vertex for the same reason. For any \(v \in V\), \(\text{deg}(v)\) is the number of edges incident to the vertex. In the context of an undirected graph, this is simply the number of edges connected to it.

With these two things in mind, one can find that the hamiltonian in QUBO form is, after dropping constant terms: $$ H(x_1, \dots, x_n) = \sum_{i=1}^n \sum_{j=i+1}^n \left( Bx_ix_j \cdot \mathbf{1}[(v_i, v_j) \in E] \right) $$ $$ + \sum_{i=1}^n x_i(A - B \text{deg}(v_i)) $$ Thus we can form our matrix \(Q\) as follows: $$ Q_{ii} = A - B \text{deg}(v_i) $$ for all \(i = 1, \dots, n\). $$ Q_{ij} = \begin{cases} B & (v_i, v_j) \in E \\ 0 & (v_i, v_j) \notin E \end{cases} $$ for all \(i = 1, \dots n\) and \(j = i+1, \dots, n\).

Implementation

#

Let’s form our BQM. This BQM depends on the graph and the two energy scaling parameters \(A\) and \(B\). So we create a function which builds it for us. This function returns a BinaryQuadraticModel (BQM) object using its static method from_qubo(Q) where the Q is the matrix we defined above.

Now, your exact implementation depends on how you wish to represent the graph, I will be using an adjacency matrix which indexes vertices from 0, where matrix[i][j] = matrix[j][i] = 1 if \((v_i, v_j) \in E\) and matrix[i][j] = matrix[j][i] = 0 otherwise

from dimod import BinaryQuadraticModel

# Helper method for getting the degree of i-th vertex
def degree(adj_matrix, i):
    # Entries are binary (0,1), so sum the i-th row
    return sum(adj_matrix[i])

def min_vert_cover_bqm(adj_matrix, a=1.0, b=1.0):
    q = {}
    n = len(adj_matrix)

    for i in range(n):
        q[(i, i)] = a - b * degree(adj_matrix, i)
        for j in range(i+1, n):
            # Interaction coeff != 0 <=> edge exists
            if adj_matrix[i][j] == 1:
                q[(i, j)] = b

    return BinaryQuadraticModel.from_qubo(q)

Now, we would use this BQM the exact same way as any other BQM (if you’re unsure check the set partition implementation), so we just need to be able to interpret the samples.

def vert_cover_from_sample(sample):
    return [i for i, s in sample.items() if s == 1]

So once again, all there is left to do is to glue the pieces together, and provide a graph \(G\).

If you’re following along, here are some things you may want to try.

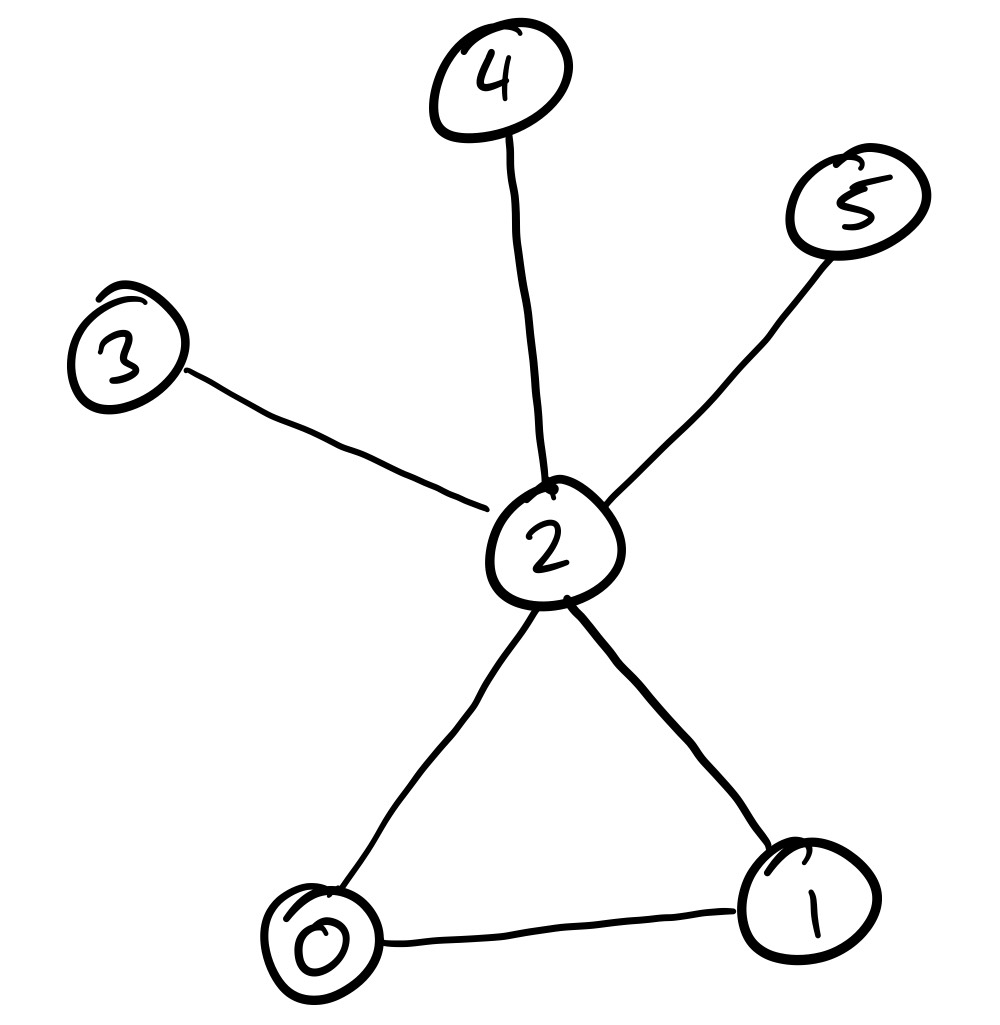

• Try your solution with following graph. What do you expect? What do you get?

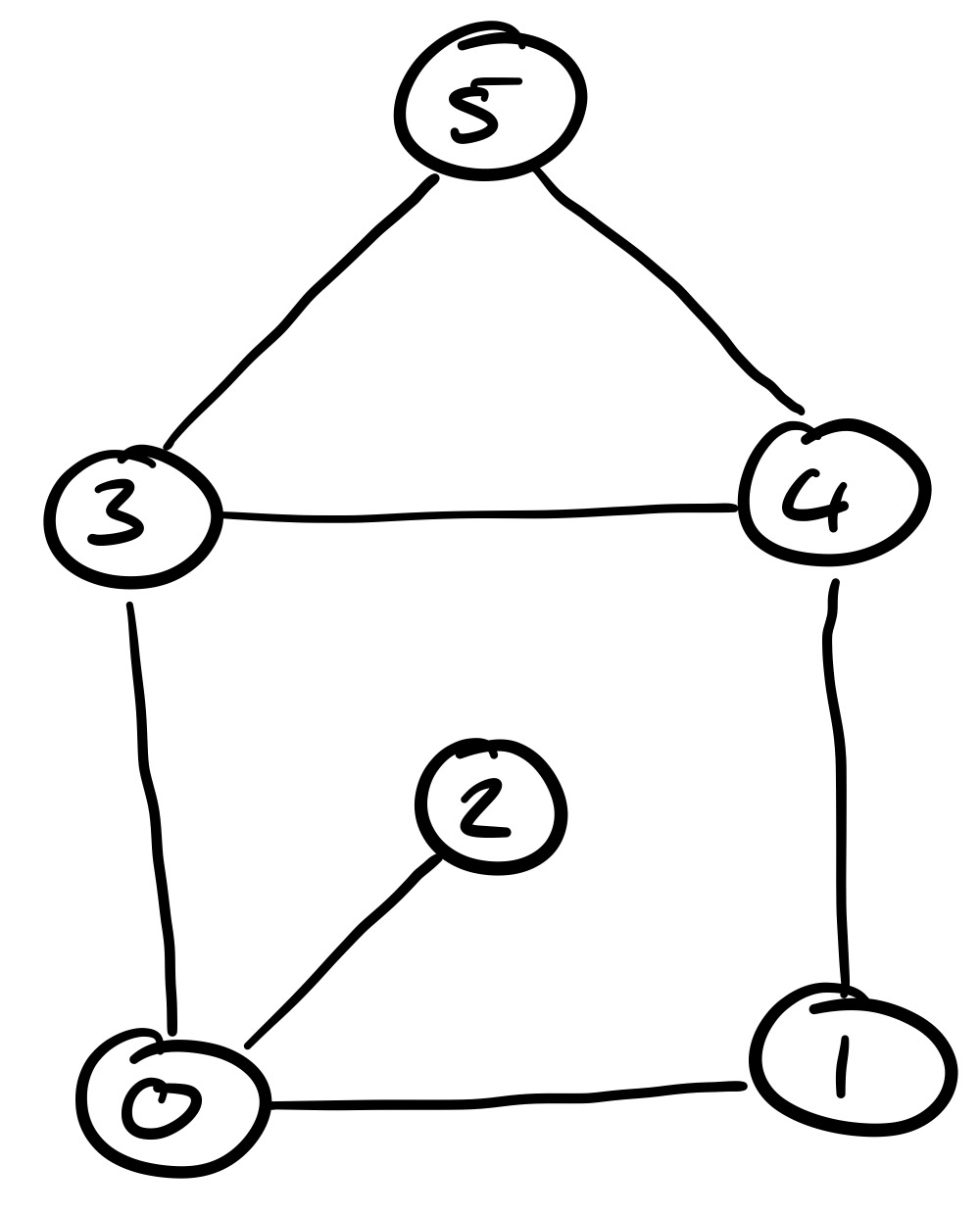

• What about this graph?
• Try to reimplement the solution to allow for vertices labelled with a string.

Now, I can almost guarantee that if you attempted the above exercises naively, then you will have received wrong answers! Assuming that you have done everything up to this point correctly, you could get wrong answers for a few reasons.

The first is a technicality in terms of energy scaling. By default, we set \(A = B > 0\). However, the constraints for \(A\) and \(B\) represent different things. Recall that

• The \(A\) term represents minimality
• The \(B\) term represents feasibility

So, if you’re getting a small set which isn’t a vertex cover (i.e. not a feasible solution), then this is an indication we must put more emphasis on feasibility than minimality. In short: fiddle with the energy scaling parameters!

The second is the easiest to fix: you’re simply not annealing for long enough. The sample method uses default parameters num_reads=1000 and annealing_time=50. You can think of num_reads as the amount of “iterations” to do, and annealing_time to be the time spent on each “iteration”.

sampler.sample(bqm, num_reads=1500, annealing_time=100)

Of course, these two categories of errors aren’t absolute, your problems may be due to a combination of these two problems!

Modular Subset Sum Problem

#

Problem Statement

#

The problem is defined as follows. Fix \(m \in \mathbb N\). Given a multiset \(A = \{a_1, \dots, a_n\} \subseteq \mathbb Z^{\ge 0}\) and a target \(t \in \mathbb Z_m = \{0, 1, \dots, m-1\}\), assign values to \(x_1, \dots, x_n \in \{0,1\}\) such that $$ \sum_{i=1}^n x_i a_i \equiv t \mod m $$ For those who do not know what this means, we say that \(a \equiv b \mod c\) if and only if \(c\) divides \(a-b\), or equivalently, \(a = kc + b\) for some integer \(k\). Thus our objective becomes: assign \(x_1, \dots, x_n\) and find \(k \in \mathbb Z^{\ge 0}\) (here \(k \ge 0\) since any sum from our multiset will be positive) such that $$ \sum_{i=1}^n x_i a_i - (t + km) = 0 $$

Formulation

#

This looks a lot like the set partition problem’s objective, and we will mostly proceed the same way by taking the hamiltonian as the square of this function. However, we do not know what \(k\) is ahead of time, and we need to find it as a part of our optimisation, so we encode it in binary using \(l\) bits: $$ k = \sum_{i=1}^l 2^{i-1} y_i $$ for \(y_1, \dots, y_l \in \{0, 1\}\). We can choose \(l\) based on the bitlength of the maximum subset sum of \(A\). Due to the amount of \(\{0,1\}\) variables, this is better suited to a QUBO formulation. Our hamiltonian is $$ H(x_1, \dots, x_n, y_1, \dots, y_l) = A \left( \sum_{i=1}^n x_i a_i - \left(t + m \sum_{i=1}^l 2^{i-1}y_i \right) \right)^2 $$

Then we convert this into QUBO form, just like the last few problems. However, I want to take this opportunity to introduce another library into the mix: PyQUBO. This will handle the manipulation for us!

Implementation

#

As stated at the end of the last subsection, rather than giving DWave the coefficients directly like we have in the past few examples, we will be using PyQUBO to calculate these coefficients for us. If you’re following along, install the library (in the same environment, we will still need DWave!)

pip install pyqubo

There’s many ways we can go about this using PyQUBO, since it gives us a way to define individual variables using Binary for \(\{0, 1\}\) and Spin for \(\{-1, 1\}\). It also gives us a short cut for defining arrays of variables with Array. If we really wanted to, we could use LogEncInteger as a shortcut for defining \(k\) in terms of binary variables as we have above. For this post, we’re going to stick with Array since I think this best highlights how PyQUBO lets us build complicated hamiltonians very quickly.

Instead of our first function returning the BQM, we will return the compiled model that PyQUBO gives us, since we will use this to decode the sample later.

from pyqubo import Array
from math import log2, ceil

def modular_subset_sum_model(multiset, t, m, a=1.0):
    n = len(multiset)

    # Creates an array of binary variables
    # x[0], ..., x[n]
    x = Array.create("x", shape=n, vartype="BINARY")

    # since all the elements are positive:
    max_sum = sum(multiset)

    # k is the quotient of the subset_sum and m
    max_k = max(0, max_sum // m)
    n_bits = max(1, ceil(log2(max_k + 1)))

    # The bits which define k
    y = Array.create("y", shape=n_bits, vartype="BINARY")

    # The power of pyqubo is that we can write our formulation directly!
    k = sum(2**i * y[i] for i in range(n_bits))
    subset_sum = sum(x[i] * multiset[i] for i in range(n))

    ham = a * (subset_sum - (t + k*m))**2

    # compile() tells pyqubo to convert our formulation into a QUBO problem
    # WARNING: it returns a Model object not a BinaryQuadraticModel object!
    return ham.compile()

As you can see, as long as we signal to PyQUBO what variables we are minimising over, we can decompose the hamiltonian into smaller parts which we can combine later.

But be careful! We cannot use the result of this with DWave directly, we first must convert it to a BinaryQuadraticModel.

from dimod import BinaryQuadraticModel

model = modular_subset_sum_model(multiset, t, m)
qubo, offset = model.to_qubo()
bqm = BinaryQuadraticModel.from_qubo(qubo, offset=offset)

If you’re wondering what the offset parameter is about, it simply represents the constant terms which we were dropping earlier. It does not really have much of an impact on optimisation, but since we have it, we may as well use it.

Now that we have the BQM we can proceed as before, but first, how do we interpret samples?

def subset_from_sample(multiset, model, sample):
    # Given a decoded sample, we can get the value of a variable
    # in an array with decoded.array(array_name, index)
    decoded = model.decode_sample(sample, vartype="BINARY")
    return [a for i, a in enumerate(multiset)
            if decoded.array("x", i) == 1]

If you’re following along, you can try the following:

• Try your solution with \(A = \{5, 18, 35, 32, 77, 14, 68, 58, 6, 75\}\), \(t = 3, m = 21\). What do you expect? What do you get?
• Change modular_subset_sum_model to use LogEncInteger for \(k\) instead of encoding directly. The docs may help.
• Can you add something to your hamiltonian to guarantee you get the minimum subset satisfying the condition? What do you get for the first bullet point now? (Hint: look back at the vertex cover formulation.)

Remember, if you’re getting wrong answers, try messing with energy scaling and sample parameters (see vertex cover exercises for more information).

Conclusion

#

In this post, we introduced the notion of the Ising model, QUBO and quantum annealing and how we can apply them to some classic computational problems. We started with a set partition problem which lends itself nicely to the Ising model and had a very simple hamiltonian. Then we moved onto two problems which lends itself nicely to QUBO, but had very difficult hamiltonians to expand; thus in the final problem, we learnt how to use PyQUBO to avoid the manual labour of expanding by hand.
